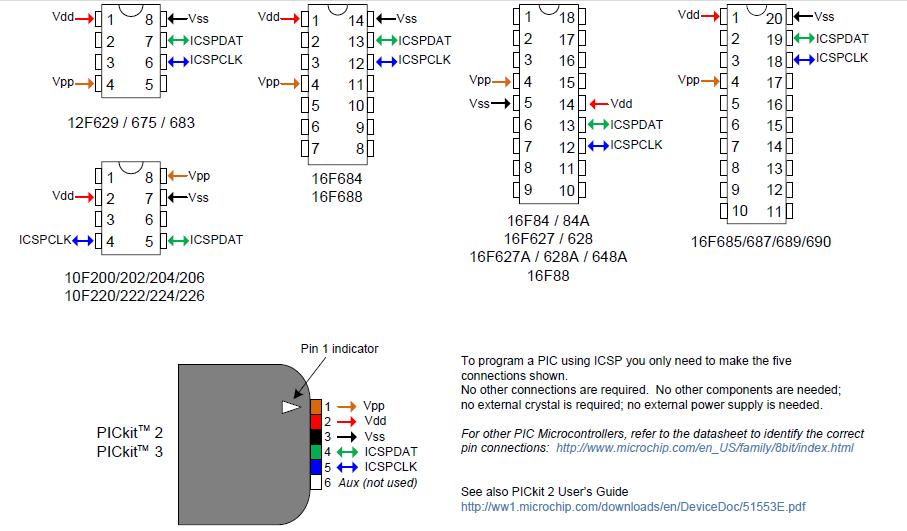

Heres how to connect up some 10F, 12F and 16F series microchips, I will add some 18F series soon
- Pickit216frange.jpg (74.62 KiB) Viewed 35320 times
Heres the links on the picture:
For other PIC Microcontrollers, refer to the datasheet to identify the correct pin connections:
http://www.microchip.com/en_US/family/8bit/index.html
See also PICkit 2 User’s Guide:
http://ww1.microchip.com/downloads/en/D ... 51553E.pdf
Some other notes, make sure that you have no components connected to the ICSPDAT and ICSPCLK Lines, has this can stop the pickit2/3 communicating to your microcontroller, especially if you are programming the microcontroller in circuit.
-
brad
- Site Admin
- Posts: 2578
- Joined: Fri Mar 26, 2010 10:30 pm
[phpBB Debug] PHP Warning: in file [ROOT]/vendor/twig/twig/lib/Twig/Extension/Core.php on line 1266: count(): Parameter must be an array or an object that implements Countable
Post
by brad » Wed Jun 29, 2011 9:52 pm
Very nice bitfogav!
-
bitfogav
- Moderator
- Posts: 915
- Joined: Sun Mar 28, 2010 9:03 pm
- Location: United Kingdom
-
Contact:
Post
by bitfogav » Fri Jul 01, 2011 7:29 pm

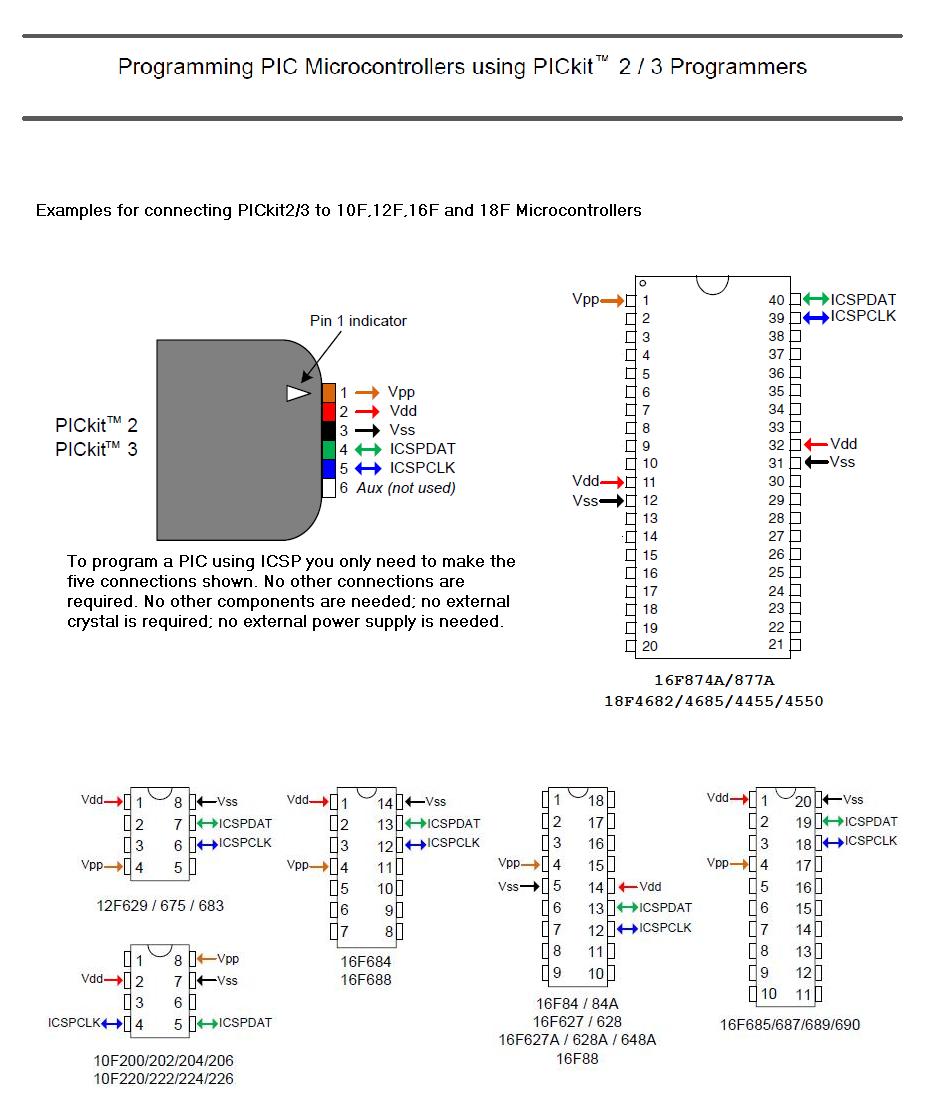

Heres an updated version, inc connecting up 40pin microchips.
