flashing rainbow schematic, instructables?

nodoubtman · Post by **nodoubtman** » Fri Apr 13, 2012 4:24 am

Hello Brad!

Would you mind to post the schematic for this project?

http://www.instructables.com/id/The-nig ... /?ALLSTEPS

thank you very much!
marC:)

Post by **brad** » Tue Apr 17, 2012 6:08 am

I didn't have a schematic for it but it's quite simple - the LED just connects the three anodes to PORTB 1, 2 and 3 (each one through their own resistor of about 150 ohms) then the cathode of the led goes to ground. Thats it!

Post by **bitfogav** » Tue Apr 17, 2012 10:35 pm

Looks simple to me, I would say use 100ohm resistors if your using a 3volt battery

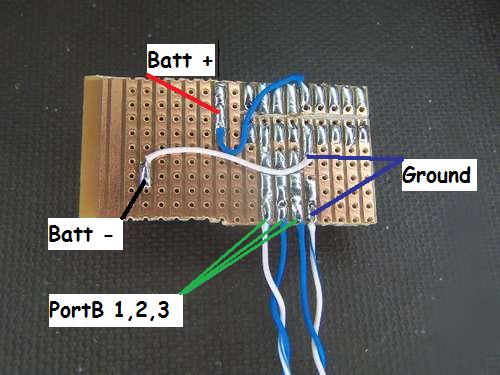

: Schemat123.jpg (34.11 KiB) Viewed 12704 times
