Just received my new 32x32 RGB matrix!

[brad]

I posted a few days ago about great prices on LED matrix displays. Well mine just arrived today! 32x32 Pixels of RGB goodness in a mini 16cm x 16cm form factor!

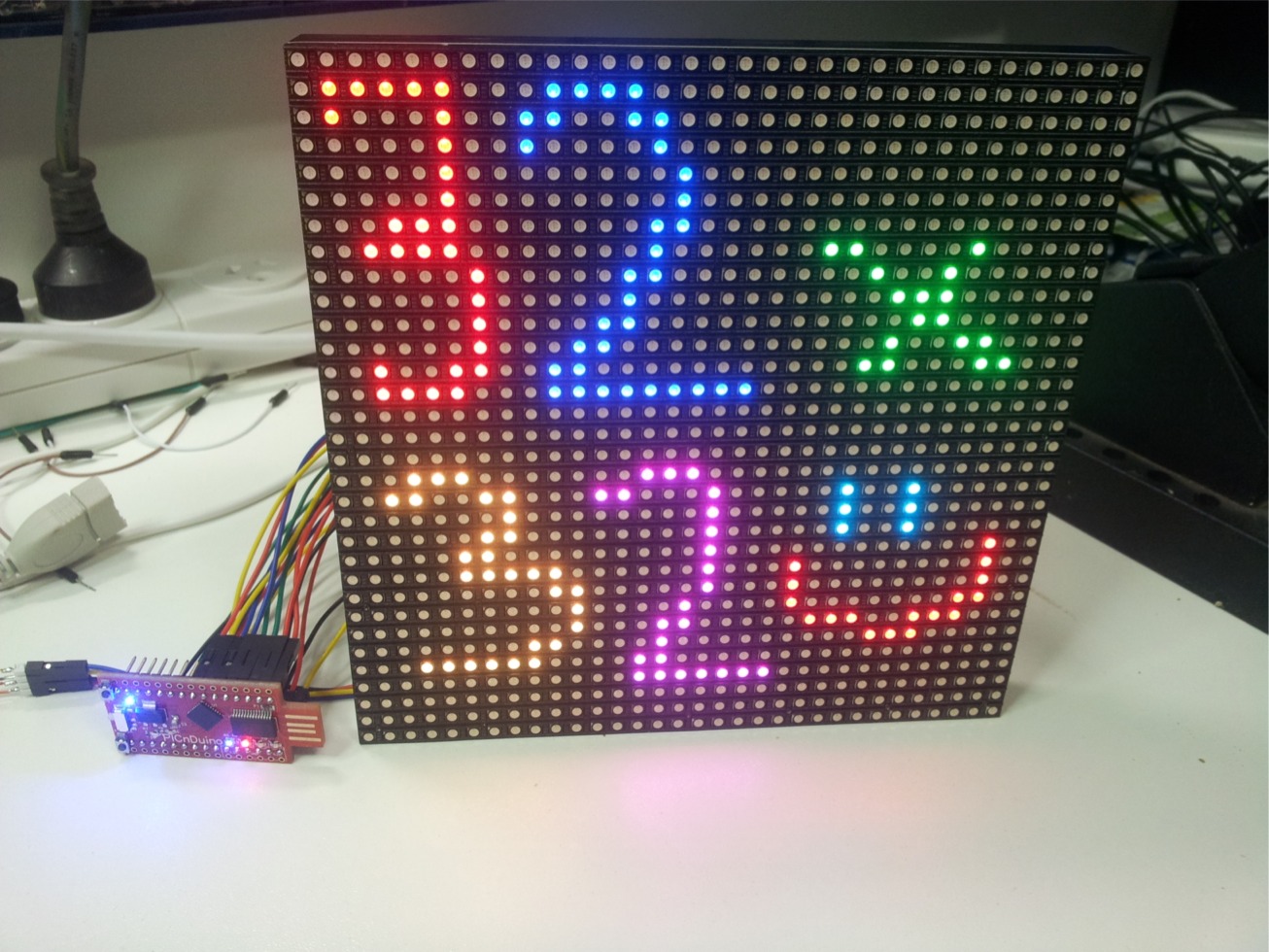

Here it is running on one of my PICnDuino's


I have some big plans for this little guy - a new game system no doubt.

For those interested, here's the swordfish code that you use to get something drawn on the display.

First of all, you set up 32 longwords (a longword can hold 32 bits). For red, green and blue:

Code: Select all

Dim OutputDataRed(32) As LongWord
Dim OutputDataGreen(32) As LongWord
Dim OutputDataBlue(32) As LongWord

Then give some Nicknames to the port pins to make them easier to use (These names line up with the names on the pins of the 32x32 matrix display)

Code: Select all

Dim RedData0 As PORTB.0
Dim RedData1 As PORTB.1
Dim GreenData0 As PORTB.2
Dim GreenData1 As PORTB.3
Dim BlueData0 As PORTB.4
Dim BlueData1 As PORTB.5
Dim Latch As PORTB.6
Dim OutputEnable As PORTB.7
Dim RowA As PORTC.0
Dim RowB As PORTC.1
Dim RowC As PORTC.2
Dim RowD As PORTC.3
Dim CLK As PORTC.4

And here's the code to actually draw stuff on the screen:

Code: Select all

Sub DrawGraphics()
    For Y = 0 To 15
        TempData0 = OutputDataRed(Y)
        TempData1 = OutputDataRed(Y + 16)
        TempData2 = OutputDataBlue(Y)
        TempData3 = OutputDataBlue(Y + 16)
        TempData4 = OutputDataGreen(Y)
        TempData5 = OutputDataGreen(Y + 16)
        For X = 0 To 31
            RedData0 = TempData0.bits(31 - X)
            RedData1 = TempData1.bits(31 - X)
            GreenData0 = TempData2.bits(31 - X)
            GreenData1 = TempData3.bits(31 - X)
            BlueData0 = TempData4.bits(31 - X)
            BlueData1 = TempData5.bits(31 - X)
            CLK = 1
            CLK = 0
        Next
        RowA = Y.bits(0)
        RowB = Y.bits(1)
        RowC = Y.bits(2)
        RowD = Y.bits(3)
        Latch = 1
        Latch = 0
        OutputEnable = 0
        DelayUS(200)
        OutputEnable = 1
    Next
End Sub

If you want to draw something on the screen, you just fill your outputdatared, outputdatagreen and outputdatablue arrays with a whole heap of 1's and 0's.

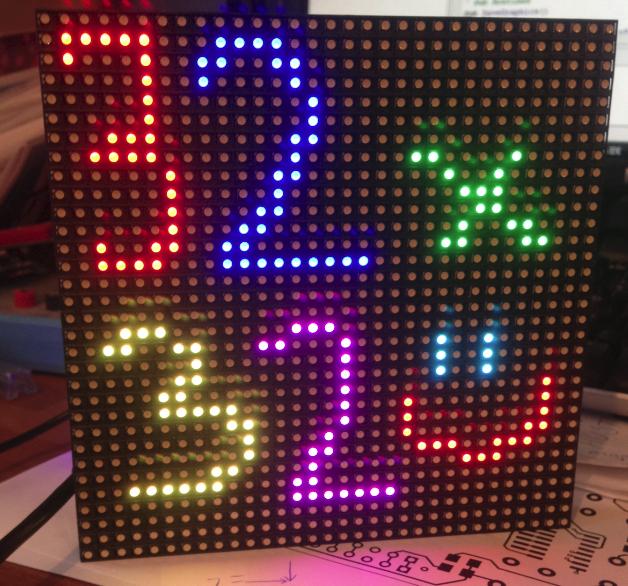

For example, if you wanted to draw what you see in the image above, you would have that data stored in an array like this:

Code: Select all

const MyDataRed(32) as longword = (%00000000000000000000000000000000, %01111100000000000000000000000000, %01000100000000000000000000000000, %00000100000000000000000000000000, %00000100000000000000000000000000, %00000100000000000000000000000000, %00011100000000000000000000000000, %00111100000000000000000000000000, %00000010000000000000000000000000, %00000010000000000000000000000000, %00000010000000000000000000000000, %00000010000000000000000000000000, %00100110000000000000000000000000, %00111100000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00011100000001110000000000000000, %00110011000110001000000000000000, %00000001000000001000000000000000, %00000011000000001000000000000000, %00000110000000001000000000000100, %00000111110000001000100000000100, %00000000011000001000100000000100, %00000000001000010000100000001100, %00000000001000110000011100111000, %00000000110000100000000011100000, %00011111100001100000000000000000, %00000000000001111111000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000)
const MyDataGreen(32) as longword = (%00000000000000000000000000000000, %00000000011110000000000000000000, %00000000110011000000000000000000, %00000000100001000000000000000000, %00000000000000100000000000000000, %00000000000000100000000000000000, %00000000000001100000000000000000, %00000000000001000000000000000000, %00000000000011000000000000000000, %00000000000010000000000000000000, %00000000000110000000000000000000, %00000000001100000000000000000000, %00000000011000000000000000000000, %00000000011111111100000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000001110000000000000000, %00000000000110001000001001000000, %00000000000000001000001001000000, %00000000000000001000001001000000, %00000000000000001000000000000000, %00000000000000001000000000000000, %00000000000000001000000000000000, %00000000000000010000000000000000, %00000000000000110000000000000000, %00000000000000100000000000000000, %00000000000001100000000000000000, %00000000000001111111000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000)
const MyDataBlue(32) as longword = (%00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000110000100000, %00000000000000000000001001000000, %00000000000000000000000111000000, %00000000000000000000000011000000, %00000000000000000000000100110000, %00000000000000000000001100011000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00011100000000000000000000000000, %00110011000000000000001001000000, %00000001000000000000001001000000, %00000011000000000000001001000000, %00000110000000000000000000000000, %00000111110000000000000000000000, %00000000011000000000000000000000, %00000000001000000000000000000000, %00000000001000000000000000000000, %00000000110000000000000000000000, %00011111100000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000)

Then to display it on the screen, you need to copy all of that data into your outputdatared, outputdatagreen and outputdatablue arrays:

Code: Select all

sub CopyImageDataIntoOutputArrays()
    for x = 0 to 31
        outputdatared(x) = mydatared(x)
        outputdatagreen(x) = mydatagreen(x)
        outputdatablue(x) = mydatablue(x)
    next
end sub

Hope that helps for now. I'll be posting my adventures as they come about

[bitfogav]

The board looks really neat, mines just left Hong Kong thanks for sharing the code, it will get me up and running in no time.. Would it be much to ask if you could share a picture of the back of the module with the connections of wiring it all up?

[brad]

Did you get in touch with James? He's very helpful!

Here's a couple of pics for you (please forgive the bad photo's, I took them through a desktop magnifying glass / light and it warped the images)

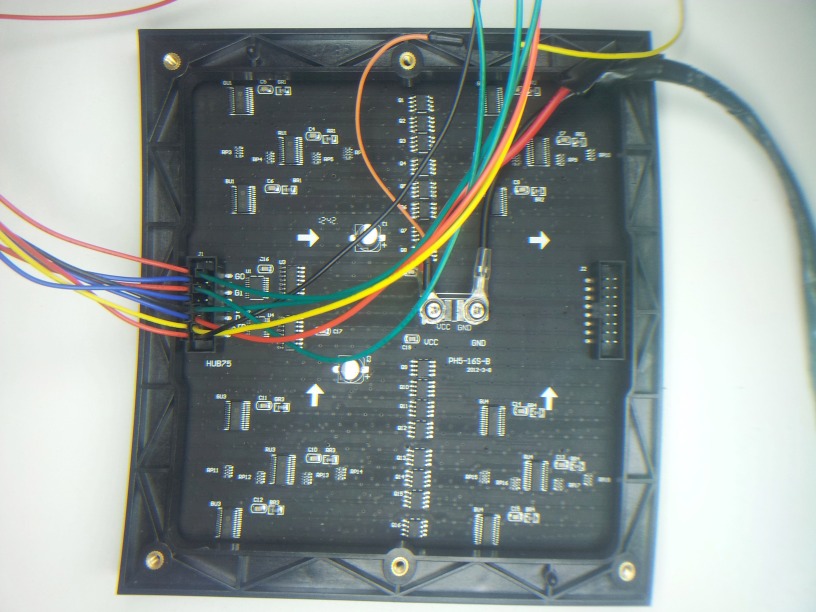

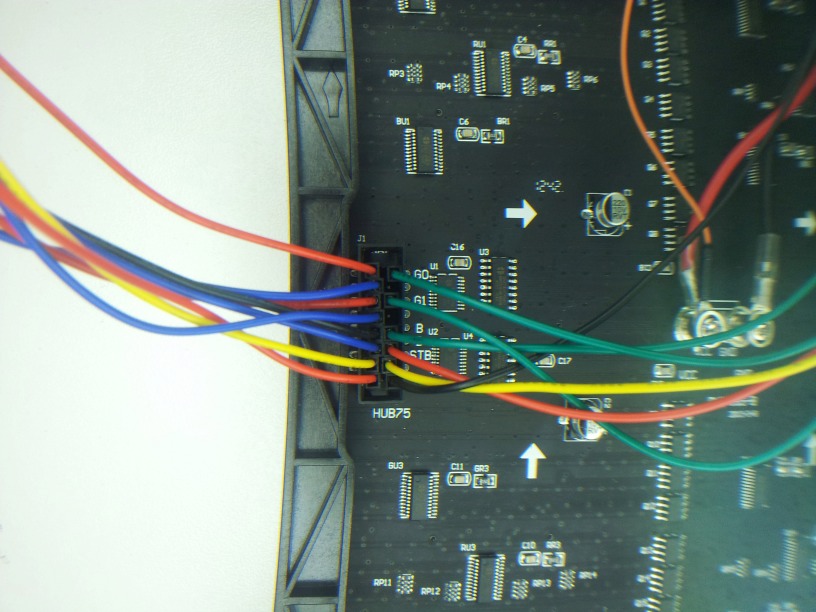

Here is the HUB75 pinout as you look at it in this follow photo - I tried to color code the wires as much as possible (I.E. the reddata connections are red etc...)

REDDATA0 | GREENDATA0
BLUEDATA0 | GROUND
REDDATA1 | GREENDATA1
BLUEDATA1 | GROUND
ROWA | ROWB
ROWC | ROWD
CLOCK | LATCH
OUTPUT ENABLE | GROUND


And here's one of the whole of the back of the unit:


Also, here's the complete code to get one static 32x32 image drawn on the screen (this is using a PICnDuino - maxed out at 64Mhz which = 16MIPS) The code uses 1,527Bytes of program memory and 445Bytes of SRAM (mainly due to the screen buffers for 32 long words of red, green and blue)

Code: Select all

Device = 18F25K20    'Automatically brings in device file 18F25K22.bas
Clock = 64           '64MHz (top speed)
Config FOSC = HSPLL   'tells PIC to use external high speed (crystal) oscillator, medium power

Include "utils.bas"      ' we are including an extra file here which allows us to use shortcuts

' Constant Arrays
const MyDataRed(32) as longword = (%00000000000000000000000000000000, %01111100000000000000000000000000, %01000100000000000000000000000000, %00000100000000000000000000000000, %00000100000000000000000000000000, %00000100000000000000000000000000, %00011100000000000000000000000000, %00111100000000000000000000000000, %00000010000000000000000000000000, %00000010000000000000000000000000, %00000010000000000000000000000000, %00000010000000000000000000000000, %00100110000000000000000000000000, %00111100000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00011100000001110000000000000000, %00110011000110001000000000000000, %00000001000000001000000000000000, %00000011000000001000000000000000, %00000110000000001000000000000100, %00000111110000001000100000000100, %00000000011000001000100000000100, %00000000001000010000100000001100, %00000000001000110000011100111000, %00000000110000100000000011100000, %00011111100001100000000000000000, %00000000000001111111000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000)
const MyDataGreen(32) as longword = (%00000000000000000000000000000000, %00000000011110000000000000000000, %00000000110011000000000000000000, %00000000100001000000000000000000, %00000000000000100000000000000000, %00000000000000100000000000000000, %00000000000001100000000000000000, %00000000000001000000000000000000, %00000000000011000000000000000000, %00000000000010000000000000000000, %00000000000110000000000000000000, %00000000001100000000000000000000, %00000000011000000000000000000000, %00000000011111111100000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000001110000000000000000, %00000000000110001000001001000000, %00000000000000001000001001000000, %00000000000000001000001001000000, %00000000000000001000000000000000, %00000000000000001000000000000000, %00000000000000001000000000000000, %00000000000000010000000000000000, %00000000000000110000000000000000, %00000000000000100000000000000000, %00000000000001100000000000000000, %00000000000001111111000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000)
const MyDataBlue(32) as longword = (%00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000110000100000, %00000000000000000000001001000000, %00000000000000000000000111000000, %00000000000000000000000011000000, %00000000000000000000000100110000, %00000000000000000000001100011000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00011100000000000000000000000000, %00110011000000000000001001000000, %00000001000000000000001001000000, %00000011000000000000001001000000, %00000110000000000000000000000000, %00000111110000000000000000000000, %00000000011000000000000000000000, %00000000001000000000000000000000, %00000000001000000000000000000000, %00000000110000000000000000000000, %00011111100000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000, %00000000000000000000000000000000)

' Variable Arrays
Dim OutputDataRed(32) As LongWord
Dim OutputDataGreen(32) As LongWord
Dim OutputDataBlue(32) As LongWord

' Variables
Dim X As Byte
Dim Y As Byte
Dim TempData0 As LongWord
Dim TempData1 As LongWord
Dim TempData2 As LongWord
Dim TempData3 As LongWord
Dim TempData4 As LongWord
Dim TempData5 As LongWord

' Port Setup
Dim RedData0 As PORTB.0
Dim RedData1 As PORTB.1
Dim GreenData0 As PORTB.2
Dim GreenData1 As PORTB.3
Dim BlueData0 As PORTB.4
Dim BlueData1 As PORTB.5
Dim Latch As PORTB.6
Dim OutputEnable As PORTB.7
Dim RowA As PORTC.0
Dim RowB As PORTC.1
Dim RowC As PORTC.2
Dim RowD As PORTC.3
Dim CLK As PORTC.4

' Sub Routines
Sub SaveGraphics()
    for x = 0 to 31
        outputdatared(x) = mydatared(x)
        outputdatagreen(x) = mydatagreen(x)
        outputdatablue(x) = mydatablue(x)
    next
End Sub

' All we need to do is store 32 long words in our output data registers, and this routine will take care of displaying them on the screen!
Sub DrawGraphics()
    For Y = 0 To 15
        TempData0 = OutputDataRed(Y)
        TempData1 = OutputDataRed(Y + 16)
        TempData2 = OutputDataBlue(Y)
        TempData3 = OutputDataBlue(Y + 16)
        TempData4 = OutputDataGreen(Y)
        TempData5 = OutputDataGreen(Y + 16)
        For X = 0 To 31
            RedData0 = TempData0.bits(31 - X)
            RedData1 = TempData1.bits(31 - X)
            GreenData0 = TempData2.bits(31 - X)
            GreenData1 = TempData3.bits(31 - X)
            BlueData0 = TempData4.bits(31 - X)
            BlueData1 = TempData5.bits(31 - X)
            CLK = 1
            CLK = 0
        Next
        RowA = Y.bits(0)
        RowB = Y.bits(1)
        RowC = Y.bits(2)
        RowD = Y.bits(3)
        Latch = 1
        Latch = 0
        OutputEnable = 0
        DelayUS(200)
        OutputEnable = 1
    Next
End Sub

' Start Of Program...
TRISB = %00000000
TRISA = %00000000
TRISC = %01100000

' Main Loop
While True()
    SaveGraphics
    DrawGraphics
Wend

[bitfogav]

Thats great stuff Brad, and thanks for posting the code aswell.. I can't wait to try it out..

[bitfogav]

Ive got mine up and running now!! so impressive these 32x32 RGB displays


[brad]

That picture looks very familiar...
